The Details

Tall people rejoice! The Light Haus tiny house is a fully customized tiny house that was designed for a couple – she is 5’0″ and he is 6’4″ tall. The design provides height clearance of 6’6″ below the loft, and 4’6″ above the loft. At 24′ long, it’s incredible how many features have been incorporated: 2 separate office spaces, large and functional kitchen, luxurious bathroom, roomy bedroom loft accessed by innovative stair design, copious amounts of storage, and even a special access door for a cat!
Clerestory windows, an abundance of light, a light interior color pallet, and non-toxic materials, make this home truly feel like a refuge from the outside world. The Light Haus tiny house is ideal for a single person, a couple, and would make a beautiful ADU on a city lot and/or nightly rental for AirBnB crowd.

Notes From the Designer

The LIGHT HAUS tiny house is a fully customized tiny house we designed for a couple – she is 5’0″ and he is 6’4″ tall. The design provides height clearance of 6’6″ below the loft, and 4’6″ above the loft. This compact home even provides a special door to the outside for their cat! The signature element of this new design is the clerestory windows bathing the interior with natural light. We think it’s appropriate to call this home the LIGHT HAUS tiny house.

Basic Information

Designer

Sol Haus Design
Vina Lustado

Name of Plan

Light Haus

Number of bedrooms/sleeping areas

2-3

Square Footage

172 sf lower level + 80 sf bedroom loft + 40 sf office loft

Dimensions

24′ x 8’ 6” x 14’ 0”

APPROXIMATE Weight

Less than 14,000#

APPROXIMATE Cost

Turnkey: $85,000

Feature Highlights

  • Car Hauler Trailer (bed in between wheel wells)
  • Engineered Design
  • ANSI Compliant
  • Primary Bedroom Location: Loft
  • Main Floor (Office space can be sleeping space)
  • Sleeps 2-4 people
  • Dining Area
  • Home Office
  • Washer/Dryer
  • Designed for Tall People
  • Removable Dining Table
  • Fold Down Deck
  • Low VOCs
  • Full Size Appliances
  • Pantry
  • Double Sink
  • Microwave
  • Shower
  • Full Size Lavatory
  • Flush Toilet
  • Roof Style: Shed Rood and Skylight
  • Insulation: Natural Insulation (cotton, wool, Roxul, etc.)
  • Heat Source: Minisplit
  • Air Conditioning: Minisplit
  • Exterior Door: Long Side Location, French Door
  • Storage Tanks: Black/Grey water
  • Water Heater: On-Demand

What's Included with this plan set?

  • Trailer Plan fully dimensioned
  • Construction Plans for Main Level & Loft Level, fully dimensioned
  • Furniture Plan with custom desk and sofa-bed/storage
  • Electrical/Mechanical Plan with equipment, wiring diagrams
  • Lighting Plan with lighting, switches

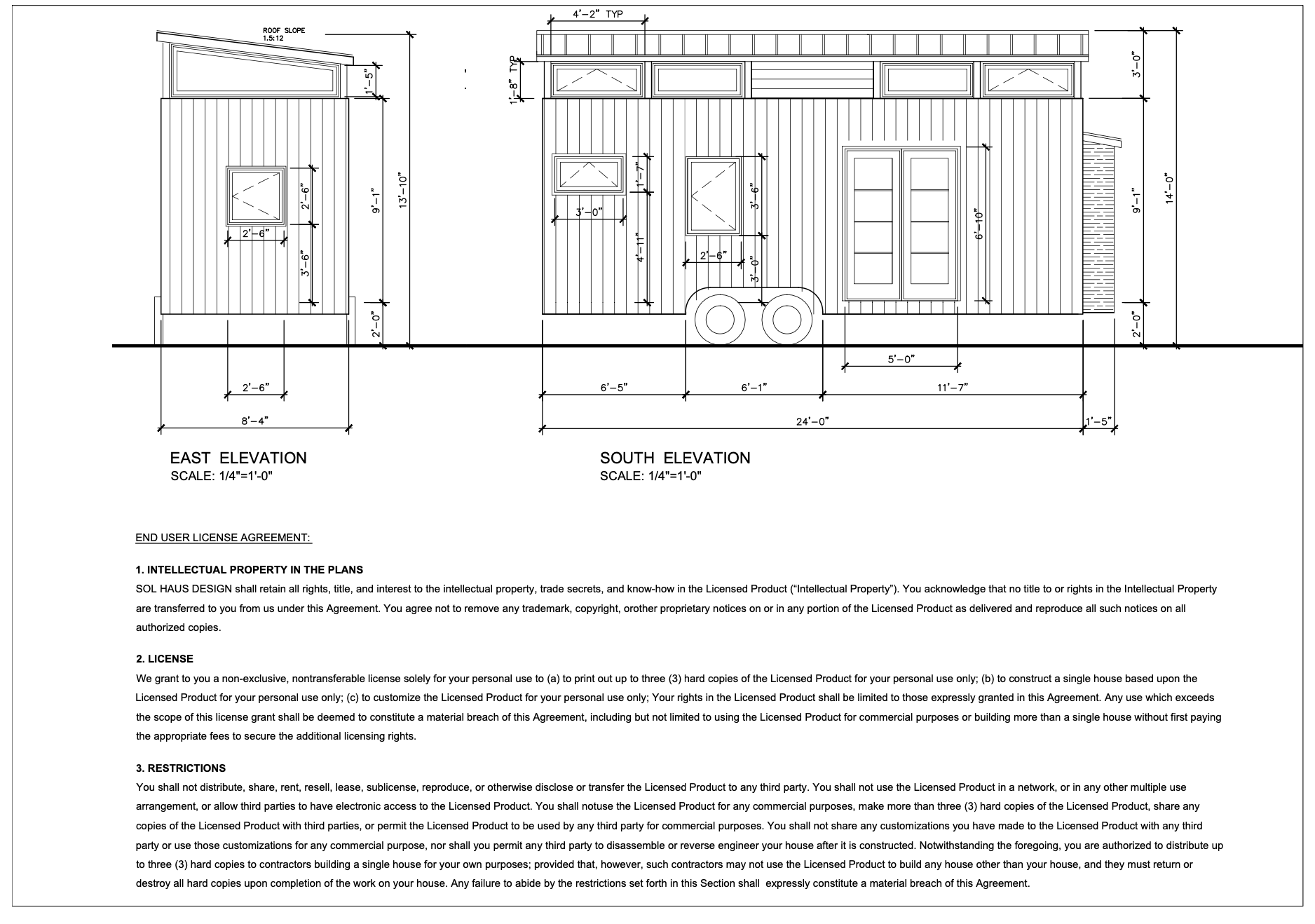

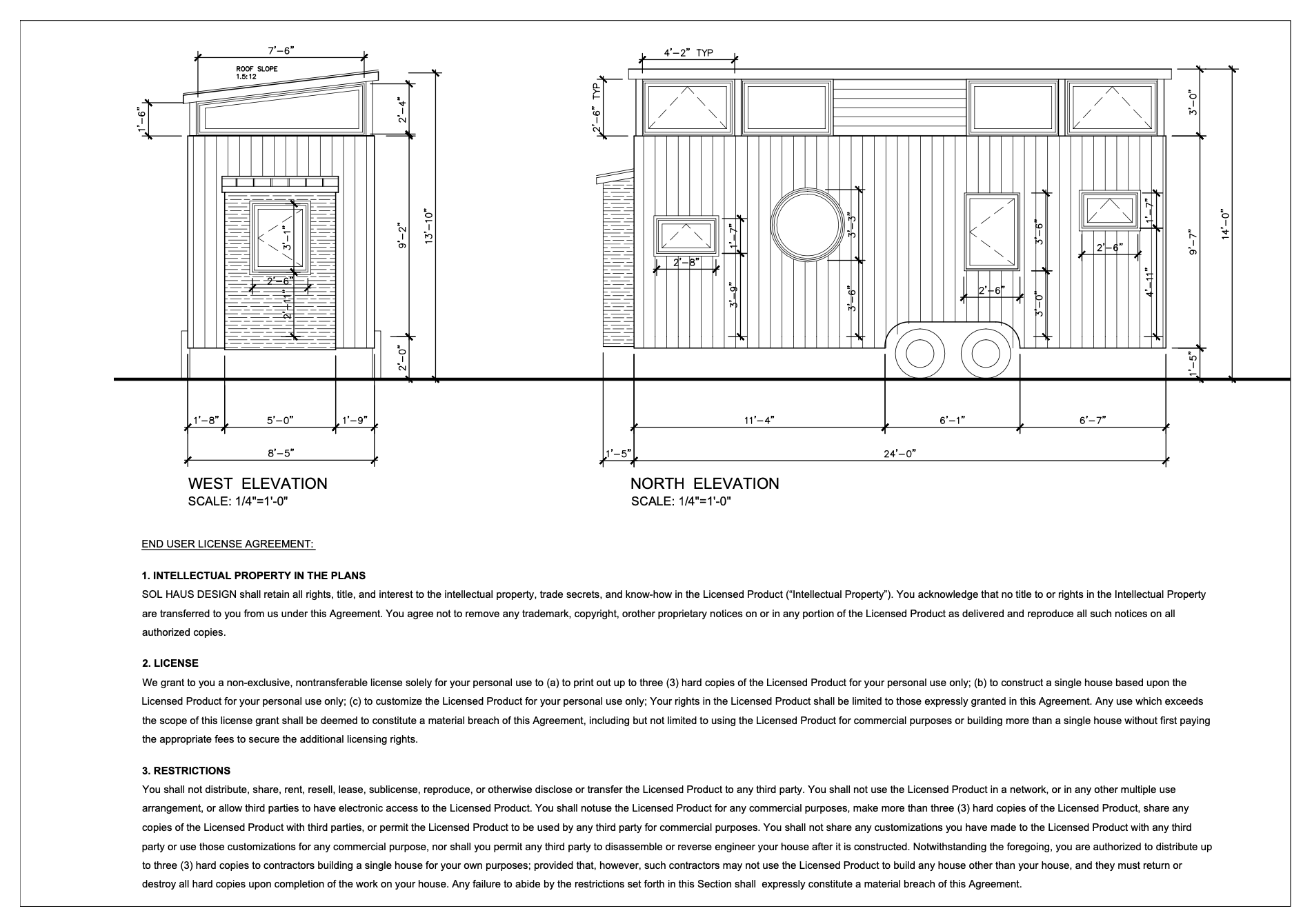

  • Exterior Elevations (all 4 sides) showing windows & doors & material specifications for siding and roof
  • Building Sections (all 4 sides) showing interior elevations with critical heights
  • Cross Section Detail showing rainscreen, insulation, roof, trailer
